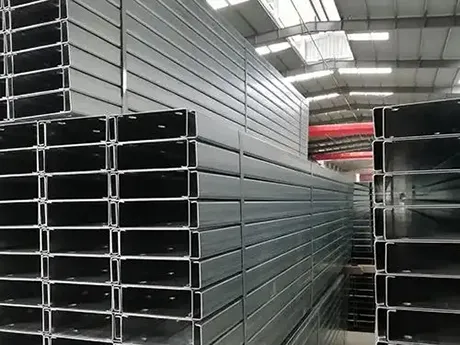

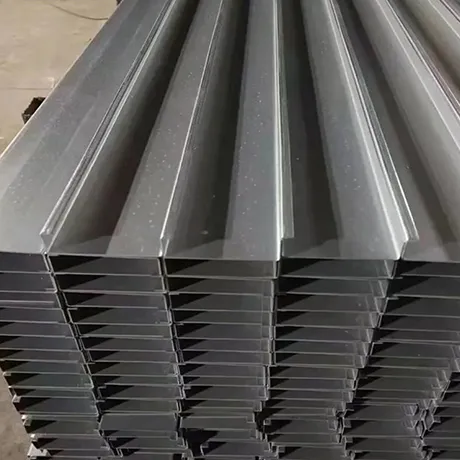

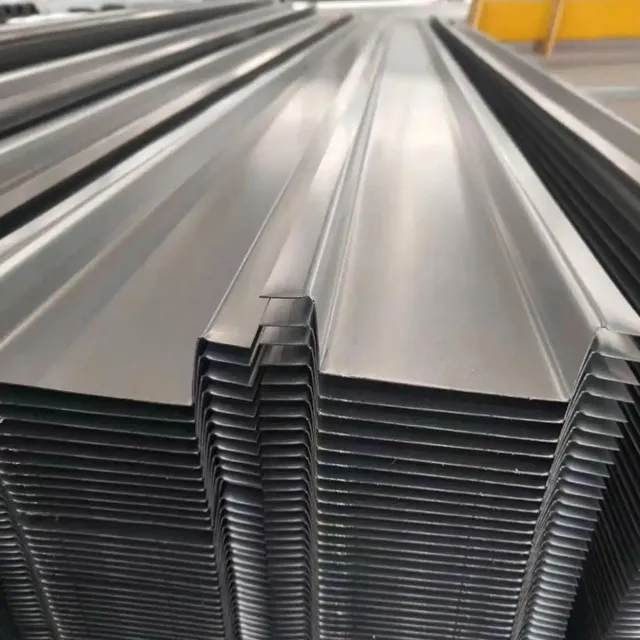

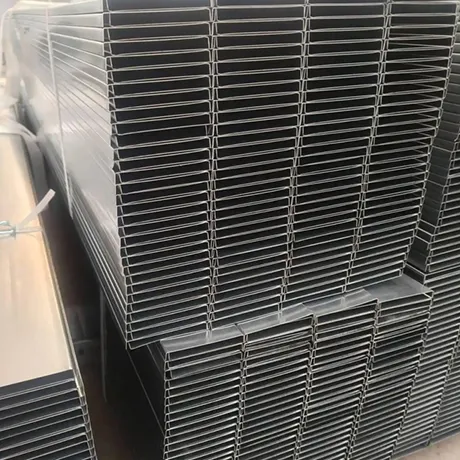

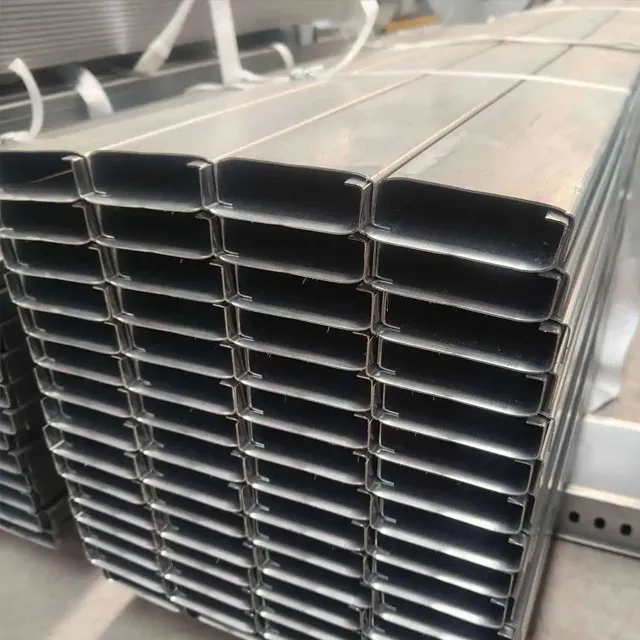

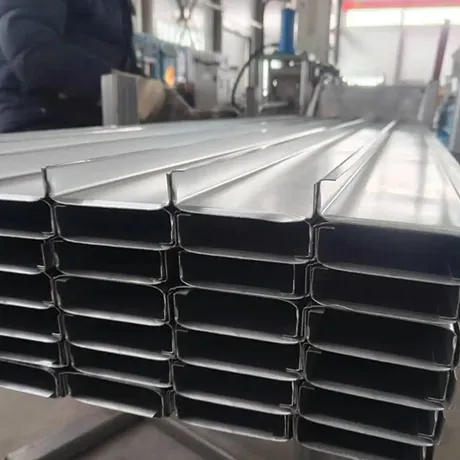

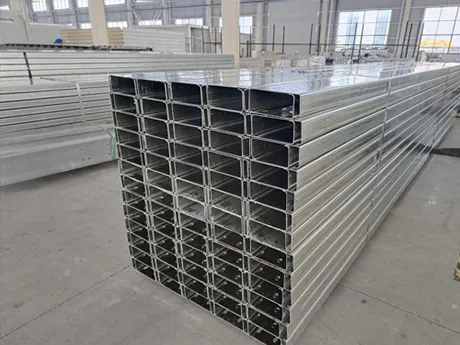

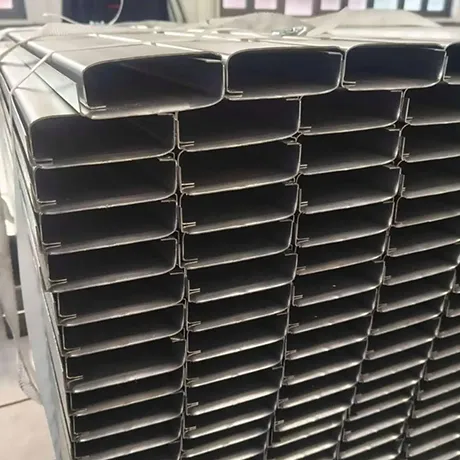

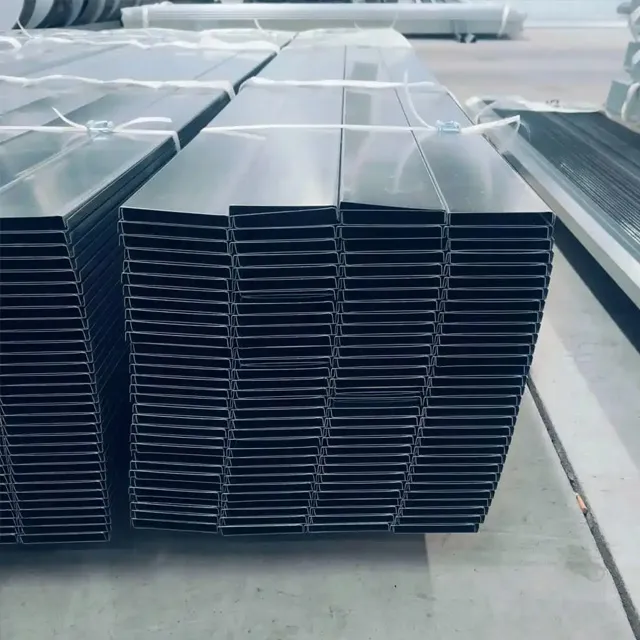

Steel Water Gutter for PV Roof

Steel Water Gutter for PV Roof is an important drainage accessory installed beneath solar modules. It works together with PV mounting structures to collect rainwater flowing from module surfaces and guide it away from the roof area.

Unlike conventional building gutters, this product is specifically optimized for photovoltaic applications. The structural design considers solar panel spacing, mounting height, roof slope and drainage efficiency, ensuring effective water discharge without affecting module installation, ventilation or power generation performance.

It is widely used in flat concrete roofs, color steel tile roofs, metal roofs and other rooftop solar mounting applications.

High-Strength Steel Structure and Anti-Corrosion Protection

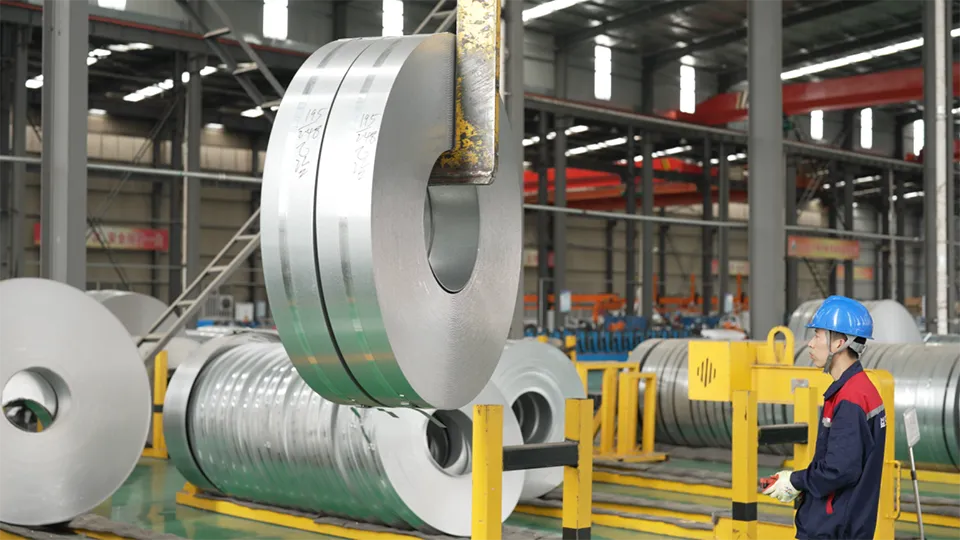

The gutter is manufactured using premium galvanized steel materials, including S250GD+ZAM275g/m² and S350GD+ZAM275g/m², providing excellent mechanical strength and corrosion resistance.

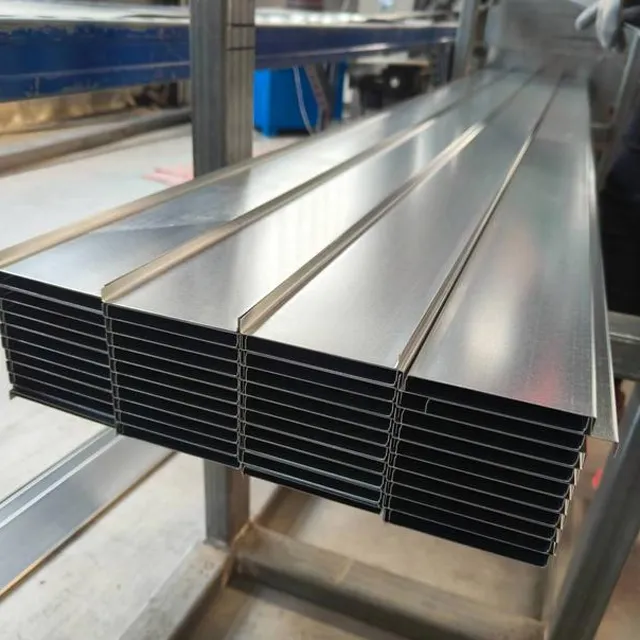

Through one-piece cold bending forming and edge folding technology, the product achieves a smooth internal channel with fewer water retention areas. The optimized structure improves drainage speed while maintaining sufficient load-bearing capacity during long-term outdoor operation.

The surface treatment options, including hot-dip galvanizing and ZAM alloy coating, enhance resistance against rainwater erosion, UV exposure and environmental corrosion, making it suitable for harsh outdoor photovoltaic environments.

Customized Design for Different PV Projects

Different rooftop projects may have different module arrangements, rainfall conditions and installation requirements. Energet Solar provides customized production services according to actual project conditions.

The gutter dimensions, thickness, bending shape and connection structure can be adjusted based on roof layout, module spacing and drainage requirements. This allows customers to obtain a better-fitted drainage solution instead of modifying standard building gutters during installation.

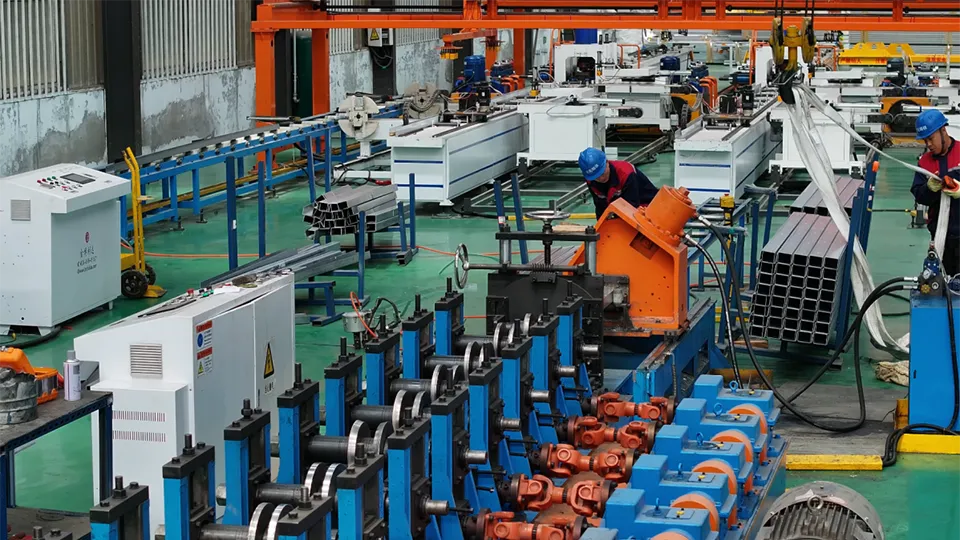

With professional production equipment and quality inspection processes, we ensure consistent dimensional accuracy and stable performance for both standard orders and large-scale solar projects.

Technical Specifications

Applications

Rooftop Solar PV Systems

The steel water gutter is mainly installed at the bottom of photovoltaic modules to improve roof drainage performance. It is suitable for commercial buildings, factories, warehouses and residential rooftop solar projects.

Solar Carport Structures

For solar carports exposed to outdoor weather conditions, the gutter helps collect and discharge rainwater efficiently, reducing water accumulation around parking areas and supporting long-term structural reliability.

Installation and Working Principle

How Does a PV Steel Water Gutter Work?

During rainfall, water flows from the surface of solar modules to the lower edge of the panel. The steel water gutter installed beneath the module collects the concentrated rainwater and directs it toward the designed drainage outlet.

By creating an additional drainage channel below the solar array, the system reduces direct water impact on the roof surface and minimizes risks caused by long-term water accumulation.

Installation Considerations

During installation, the gutter position should match the photovoltaic module layout and roof drainage direction. The connection joints need to maintain proper overlap and waterproof treatment to prevent leakage during heavy rainfall.

For large-scale PV projects, professional layout planning is recommended to ensure consistent drainage performance across the entire solar array.

Why Choose Energet Solar Steel Water Gutter?

Optimized for Photovoltaic Applications

Unlike traditional roof gutters, this product is developed specifically for solar mounting systems. The structure is designed around PV module spacing, installation requirements and drainage paths, providing better compatibility with rooftop solar projects.

Reliable Outdoor Performance

The combination of high-strength steel and ZAM anti-corrosion coating provides long-term protection against moisture, temperature changes and outdoor environmental exposure.

Flexible Manufacturing Capability

Energet Solar supports customized dimensions and production solutions based on different project requirements, helping EPC contractors and distributors reduce installation adjustments and improve project efficiency.

Product vs Competitors

Better Drainage Performance for Solar Arrays

Ordinary building gutters are designed for traditional roof structures and may not match the unique water flow conditions created by photovoltaic modules.

Energet Solar Steel Water Gutter is optimized according to solar panel arrangement, with suitable channel depth and flow design to improve rainwater collection efficiency and reduce water retention after rainfall.

Stronger Corrosion Resistance

Many standard drainage products use basic surface protection that may become vulnerable after long-term outdoor exposure.

Our PV steel gutter adopts advanced anti-corrosion coating technology, providing more stable protection against rain, humidity and environmental corrosion, which helps extend service life and reduce maintenance frequency.

Improved Installation Compatibility

The product supports customized sizes according to different roof structures and module layouts. Compared with universal drainage accessories requiring additional modification, our solution offers better fitting accuracy and higher installation efficiency.

Frequently Asked Questions (FAQ)

Q1: Will the steel gutter affect the power generation efficiency of solar modules?

No. The gutter adopts a low-profile structure installed beneath the modules. It does not block sunlight exposure, while the reserved installation space maintains natural airflow and helps prevent heat accumulation.

Q2: How can leakage at gutter connection points be prevented?

The product uses optimized folding forming technology and supports waterproof connection accessories. Proper overlap installation and sealing treatment help prevent rainwater leakage at joints.

Q3: Is it suitable for different types of photovoltaic roofs?

Yes. It can be applied to concrete flat roofs, color steel tile roofs, metal roofs and solar carport structures. Customized dimensions are available for special roof conditions.

Q4: What is the expected service life of the PV steel water gutter?

With high-quality steel materials and anti-corrosion coating protection, the gutter provides strong weather resistance and can operate reliably throughout the service life of the photovoltaic system.

Q5: Can Energet Solar customize the gutter size for specific projects?

Yes. We can customize length, thickness, width and forming structure according to project drawings, module arrangement and local installation requirements.
