Z-Channel Steel

Energet Solar Z-Channel Steel is manufactured for solar mounting structures, wall supports, and various steel connection applications. With precise forming technology and consistent material quality, it provides stable structural support and flexible installation options for different project requirements.

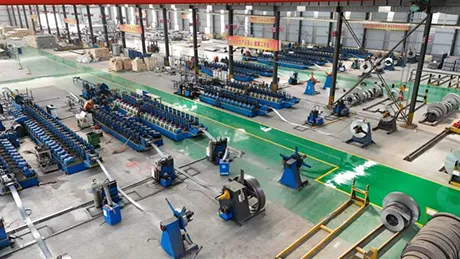

We use advanced cold-forming and precision punching technology to manufacture each Z-Channel Steel section. With 30+ cold bending machines, 50+ CNC punching machines, and 60+ stamping presses, we maintain high efficiency while ensuring dimensional accuracy and consistent quality across all orders.

Our strong partnership with Xintian Steel allows us to secure high-quality raw materials, including Q235B/Q355B and S250GD--S420GD galvanized/ZAM-coated steel. This gives our customers a stable supply chain and competitive pricing advantage.

Backed by an experienced R&D team, we also provide full customization services for Z-Channel Steel, including size, thickness, hole layout, and load-bearing requirements. Whether for solar farms, carports, or industrial steel structures, we help customers design solutions that fit real installation conditions.

We serve long-term clients across Europe, Africa, the Middle East, and the Americas, and we understand regional installation standards and engineering requirements, ensuring every project runs smoothly from design to delivery.

Specification

Dimension:

- Length: 1000mm—6000mm

- Width: 40mm—80mm

- Height: 50mm—220mm

- Thickness: 1.8mm—3.0mm

Material:

- Q235B / Q355B (S235JR / S355JR) Carbon Steel

- S250GD + ZAM275g/m²

- S350GD + ZAM275g/m²

- S420GD + ZAM275g/m²

Surface Treatment:

- Hot-Dip Galvanized (45—120μm) / ZAM Coating

Application:

- Steel structure, solar mounting system, carport structures

Function:

- Used as purlin support, providing structural stability and load-bearing reinforcement

Practical Application Cases

Our Z-Channel Steel has been widely applied in international solar projects. In France, a large 80MW solar power plant selected our system for mounting support due to its stable Z-shaped structure and strong adaptability. After more than 2.5 years of operation, the structure remains stable with no deformation or corrosion, maintaining reliable module support.

In another residential solar project in the Americas, our customized product solved limited installation space challenges. The optimized hole position and lightweight design improved installation efficiency while ensuring strong load-bearing performance, earning positive feedback from the client.

Customization and Production Process

We provide full customization services for Z-Channel Steel based on your project requirements. Customers can share drawings or technical needs such as size, thickness, load capacity, and installation environment. Our engineering team will design a tailored solution and confirm all specifications before production.

Once approved, we proceed with mold development (if required) and production scheduling. The entire manufacturing process follows strict quality control, including raw material inspection, cold forming, precision punching, galvanizing or ZAM coating treatment, and final inspection.

Each batch of Z-Channel Steel is carefully tested before packaging to ensure structural strength, corrosion resistance, and dimensional accuracy, delivering reliable performance for global solar and construction applications.
