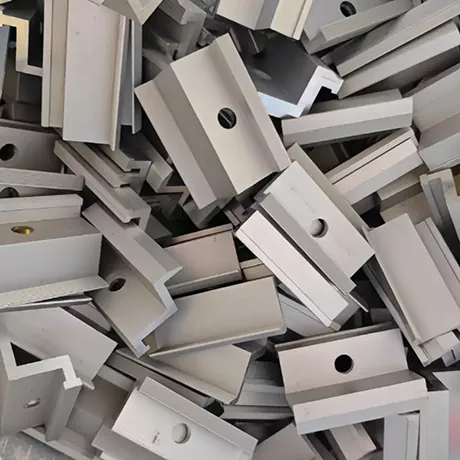

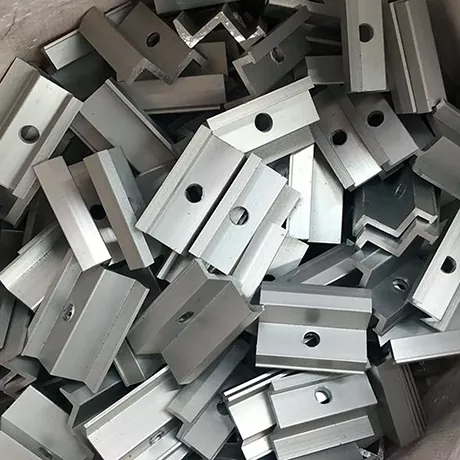

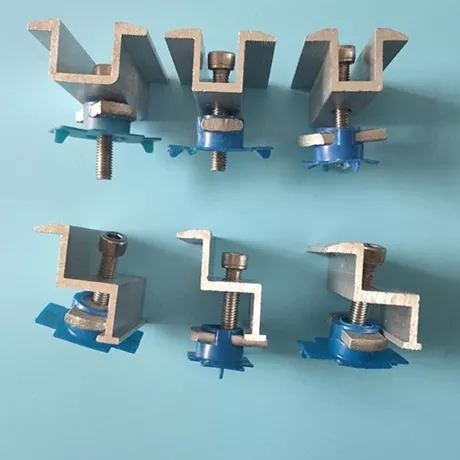

Aluminum Solar End Clamp

Energet Solar focuses on manufacturing standard-compliant Aluminum Solar End Clamp, which is a necessary core accessory for ground-mounted solar stations, rooftop distributed photovoltaic systems, solar carports and agricultural solar complementary projects. Different from mid clamps used for connecting two panels, it is applied to the outermost edge of single solar modules, undertaking the final locking and positioning work of the entire photovoltaic array.

Key Features

The product is manufactured from high-strength 6005-T5 aluminum alloy, offering an excellent balance of lightweight construction, mechanical strength and corrosion resistance for long-term outdoor photovoltaic applications.

Adopting one-piece extrusion molding and precision CNC trimming technology, the end clamp has accurate overall size, flat and smooth surface without sharp edges, effectively avoiding scratch damage to solar module frames.

Each production batch undergoes dimensional inspection and appearance inspection to ensure consistent assembly accuracy and reliable installation performance.

Why Choose Our Aluminum Solar End Clamp?

Our factory is equipped with aluminum extrusion, CNC machining, and surface treatment equipment, ensuring stable and reliable product quality while achieving efficient mass production.

Our professional R&D team supports customized non-standard production, adjusting the width, thickness, and structural curvature of the clamps according to different solar module frame specifications and installation environments.

We provide a one-stop service including product customization, mass production, standardized packaging, and overseas after-sales technical guidance, helping global customers simplify the procurement process and reduce project construction costs.

Product Parameters

Detailed drawings and customized dimensions are available upon request.

How to Choose the Right End Clamp?

Choosing the right end clamps depends on several project factors.

1. Solar Module Thickness

The clamp height must match the thickness of the solar module frame to ensure sufficient clamping force.

2. Mounting Rail System

Different rail profiles may require different clamp structures or bolt lengths.

3. Environmental Conditions

Projects located in coastal, desert, or high-wind areas require higher corrosion resistance and stronger structural stability.

4. Surface Treatment

For long-term outdoor use, anodized aluminum is recommended due to its excellent corrosion resistance and UV resistance.

Typical Applications

The Aluminum Solar End Clamp is widely used in various photovoltaic projects, including:

- Utility-scale solar power plants

- Commercial rooftop solar systems

- Residential rooftop installations

- Solar carports

- Agricultural photovoltaic projects

- Industrial solar mounting systems

Precautions for Use

To ensure long-term stable operation and safe fixing effect of Aluminum Solar End Clamp, standardized installation and daily use specifications need to be followed strictly.

First, match the clamp model reasonably according to the actual thickness of the solar module frame, and avoid forced assembly of mismatched specifications, so as to prevent module frame deformation or insufficient locking force.

Second, control the bolt tightening strength during installation; excessive force will easily cause structural deformation of the clamp, while insufficient force will lead to module loosening under wind vibration.

Third, avoid artificial cutting and random modification of the clamp structure on site, which will damage the original stress structure and reduce fixing stability.

Fourth, conduct regular inspection after project completion, check for loose bolts and surface oxidation, and timely maintain accessories used in coastal, high humidity and saline-alkali areas to extend service life.

For projects located in coastal, desert or high-wind regions, periodic inspection is recommended to ensure long-term fastening performance.

Product vs Competitors

Our Aluminum Solar End Clamp has obvious comprehensive advantages compared with ordinary end clamps on the market in terms of material quality, structural design and practical performance.

In terms of raw materials, we use high-purity 6005-T5 aluminum alloy with higher purity than ordinary recycled aluminum materials, which has stronger toughness and compression resistance, and is not easy to deform after long-term outdoor stress, effectively avoiding module falling risks caused by clamp failure.

In structural design, our products adopt optimized stress balance structure, which can evenly disperse external wind pressure and vibration force. Compared with single-sided ordinary end clamps, the fixing stability is significantly improved, and the failure rate in extreme weather is greatly reduced.

In terms of surface treatment, we use thickened anodizing process, which has better anti-corrosion and anti-ultraviolet aging ability than ordinary thin-layer oxidation products. The overall service life is more than 20% longer than industry standard products, greatly reducing later maintenance and replacement costs for solar projects.

Factory Production Capabilities

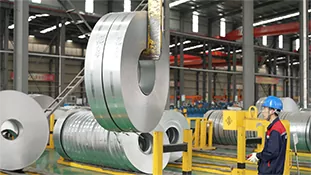

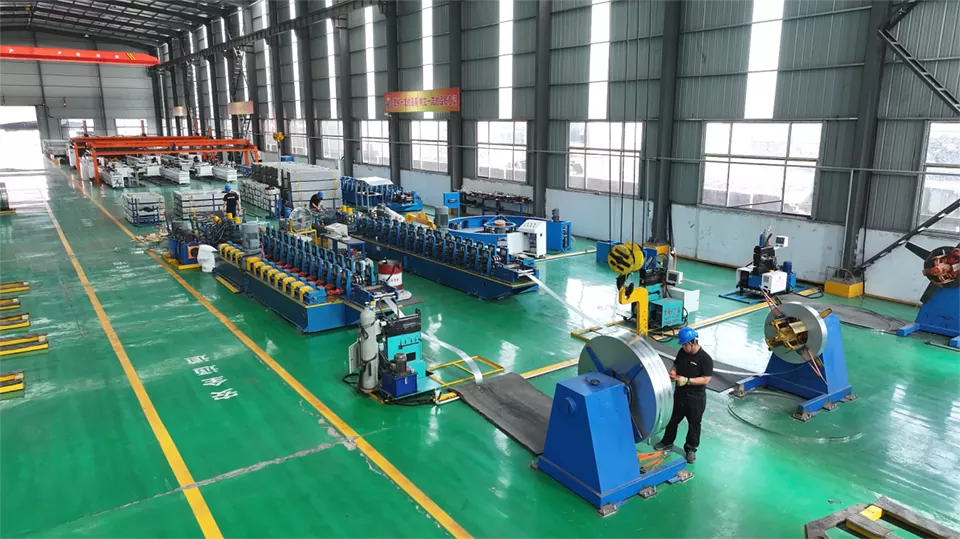

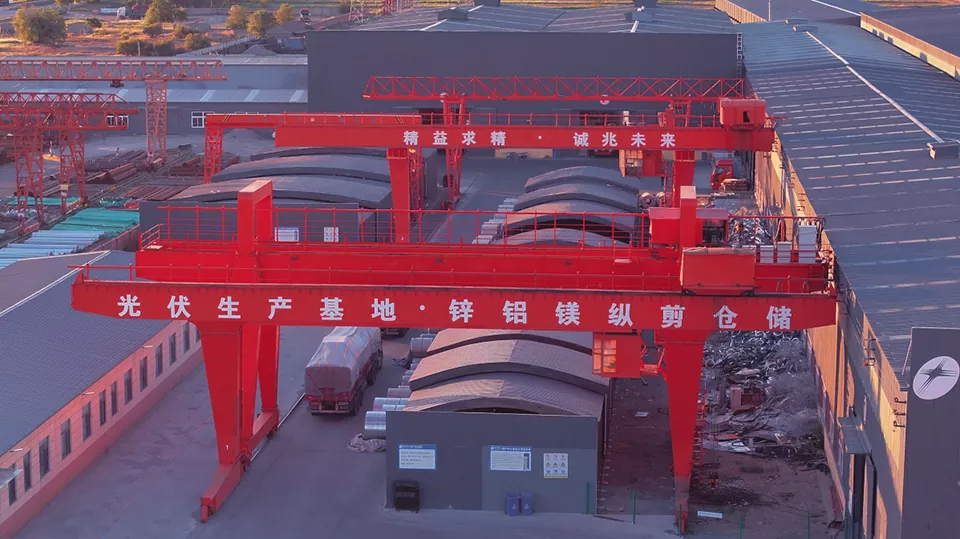

Our aluminum solar panel clamps are manufactured at our production base in Tianjin. This base boasts advanced aluminum processing equipment and a standardized production system, ensuring consistent product quality and efficient delivery. We have four modern factories covering over 100,000 square meters, equipped with more than 40 automated production lines, with an annual production capacity of 500,000 tons. This allows us to meet customized orders and large-scale photovoltaic project needs worldwide.

From raw material inspection and extrusion molding to CNC machining, anodizing, dimensional inspection, and packaging, every production stage is conducted under a standardized quality management system to ensure product consistency and installation reliability.

FAQ

Can you customize the end clamp for different module thicknesses?

Yes. We support OEM and ODM manufacturing for different photovoltaic module frame heights, rail systems and installation requirements.

Do you provide technical drawings?

Yes. Our engineering team can provide installation drawings and customized structural designs according to project requirements.

Can you support utility-scale solar projects?

Yes. Supported by an annual production capacity of 500,000 tons and 40+ production lines, we are capable of supplying large-scale photovoltaic projects worldwide.

What quality inspections are performed?

Each production batch undergoes raw material inspection, dimensional inspection, machining inspection, surface treatment inspection and final packaging inspection before shipment.
