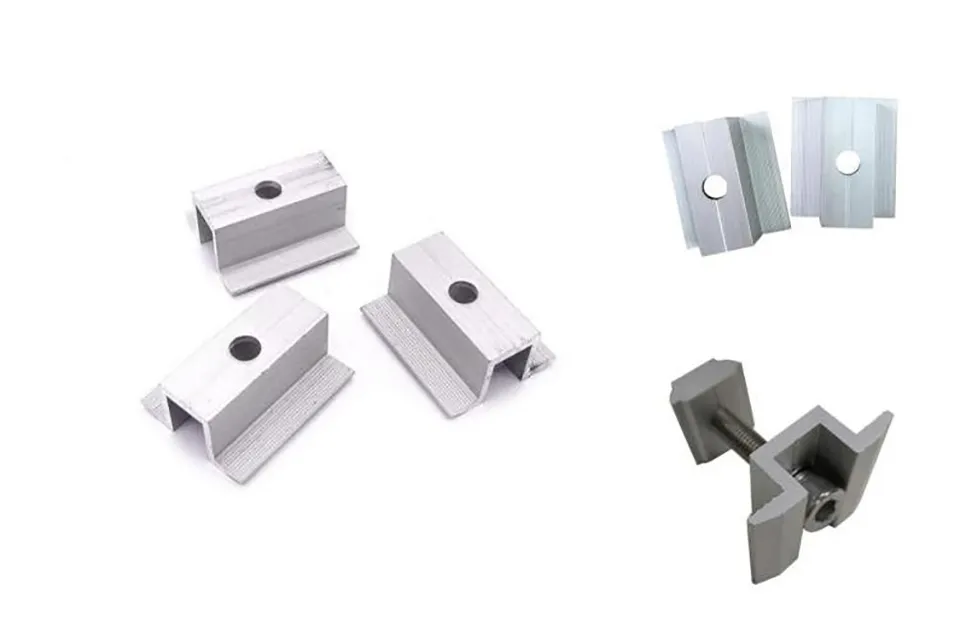

PV Aluminum Mid Clamp

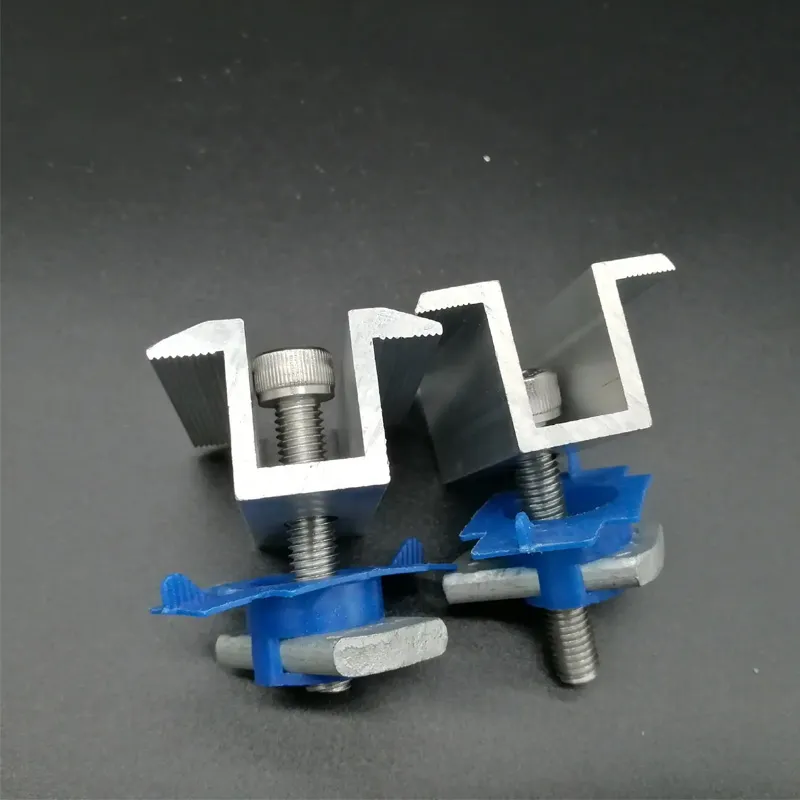

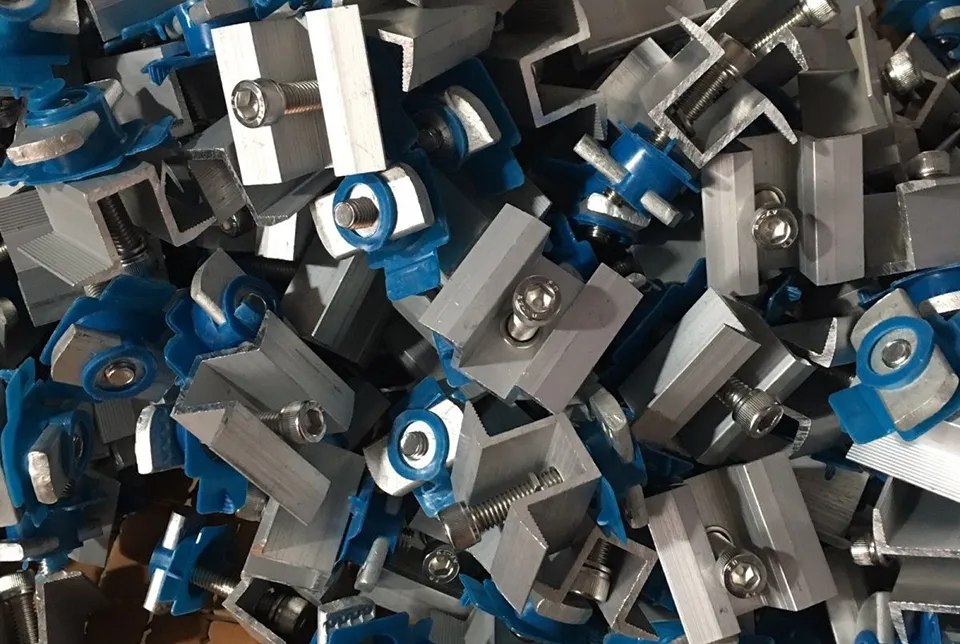

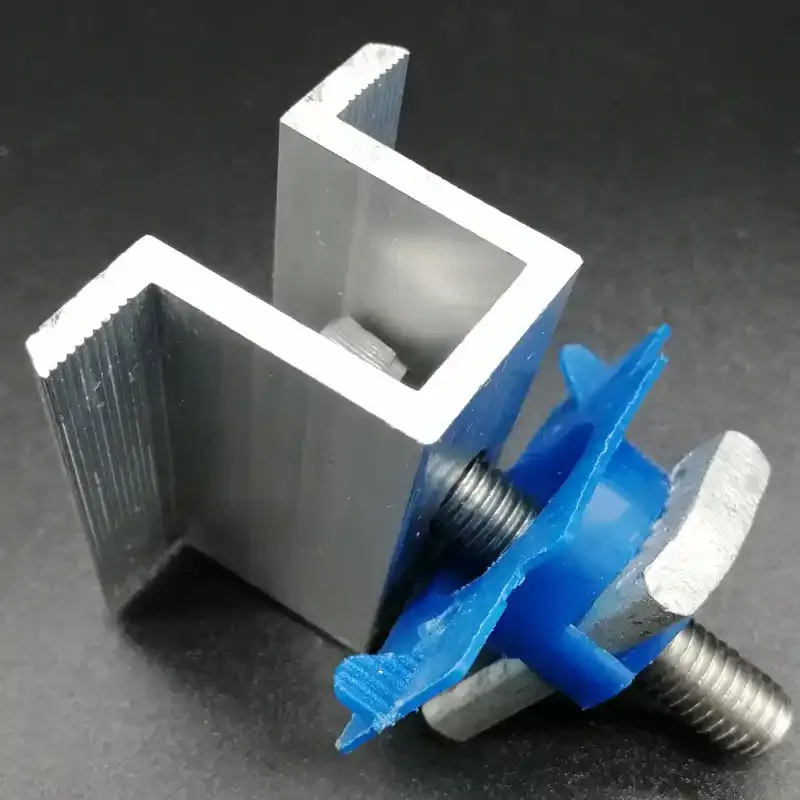

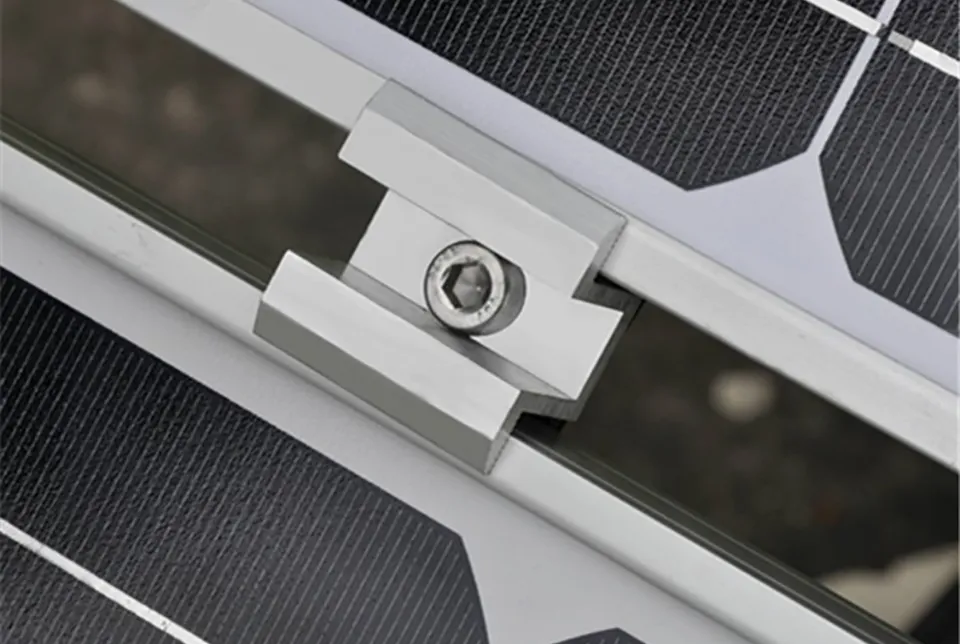

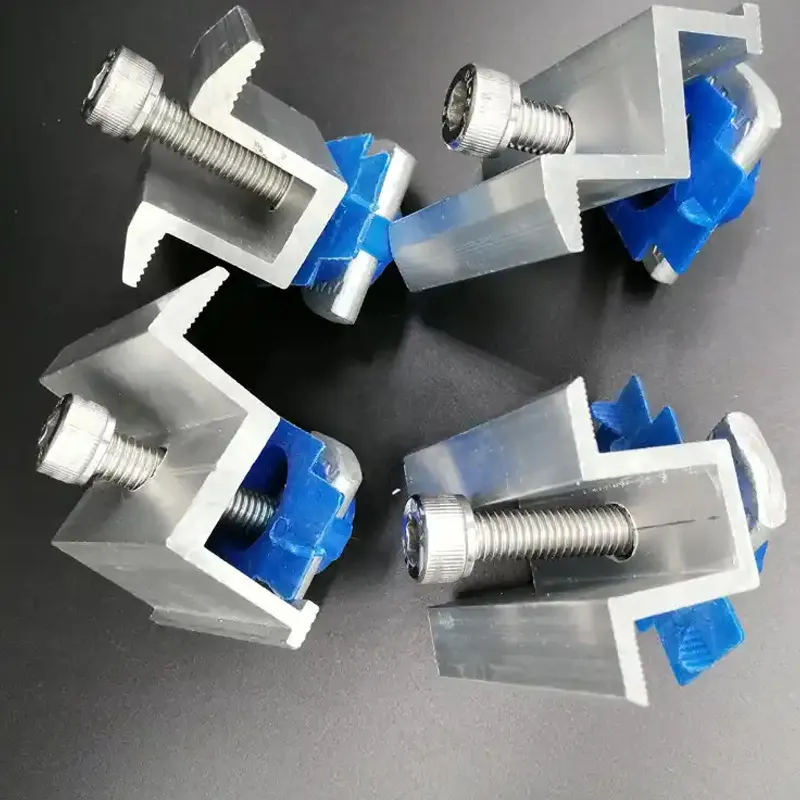

PV Aluminum Mid Clamp is installed between two adjacent framed solar modules to secure the panels onto mounting rails. Together with stainless steel bolts and T-slot nuts, it forms the central fixing point of the photovoltaic mounting system, helping maintain panel spacing and structural stability under wind, snow and thermal expansion loads.

The clamp is manufactured from 6005-T5 aluminum alloy by extrusion forming and CNC precision machining. After machining, all contact edges are deburred to minimize scratches on module frames during installation. The anodized surface improves corrosion resistance for long-term outdoor exposure.

Standard models are available for common module frame heights, while customized clamp height, slot dimensions, bolt configuration and anodized finish can be produced according to project drawings. OEM logo marking and customized packaging are also available for distributors and EPC contractors.

Product Specifications

- Thickness: 3.0mm~5.0mm

- Material: Aluminum 6005-T5

- Application: Ground-mounted PV Racking System / Rooftop PV Racking System

- Function: Fix and connect the solar module

How to Select the Right PV Aluminum Mid Clamp

Selecting a matched PV Aluminum Mid Clamp is critical to ensure the safety and stability of solar module installation, and customers can make selection according to three core project parameters.

First, confirm the frame thickness of the solar module, which is the key basis for choosing the clamp's clamping width, to ensure a tight fit without excessive extrusion or loose fixation.

Second, match the local environmental conditions; for coastal, high-altitude and heavy rainfall areas, it is recommended to choose clamps with upgraded thick anodized treatment for stronger corrosion and aging resistance.

Third, select specifications according to installation density and wind load standards of the project, and we will recommend high-rigidity enhanced models for high-wind areas to improve overall system stability.

Our professional team provides one-on-one free selection guidance to help customers avoid model mismatch and project hidden dangers.

Why Choose Energet Solar's PV Module Medium Blocks?

✅ Certifications & Quality Management

Our production management system has passed SGS on-site audits and obtained SGS Gold Plus Supplier certification. Standardized quality control is implemented throughout the product manufacturing process to ensure batch consistency and traceability.

✅ Compliance with EU Project Requirements

Our supporting PV support systems have passed EN 1090-1 and CPR (Construction Products Regulation) certifications, meeting EU market compliance requirements for steel structure products.

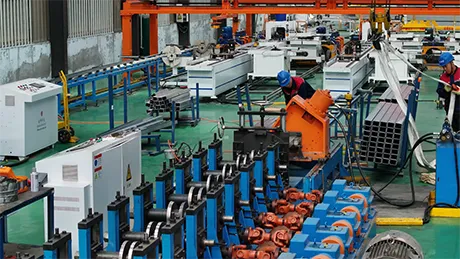

✅ Stable Supply Capacity

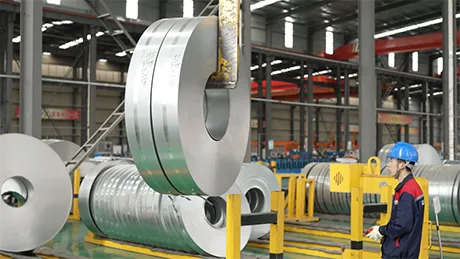

With four production plants and approximately 50,000 tons of raw material reserves, we can support continuous supply for large-scale PV projects and have the capability to organize mass production according to project delivery schedules. We recently participated in supplying 1.2GW PV projects in the Middle East.

✅ Manufacturing Process

We use 6005-T5 aluminum alloy extrusion molding, followed by CNC precision machining to ensure dimensional accuracy. The product surface is smooth and burr-free, reducing the risk of scratches on the PV module frames during installation.

Case Study

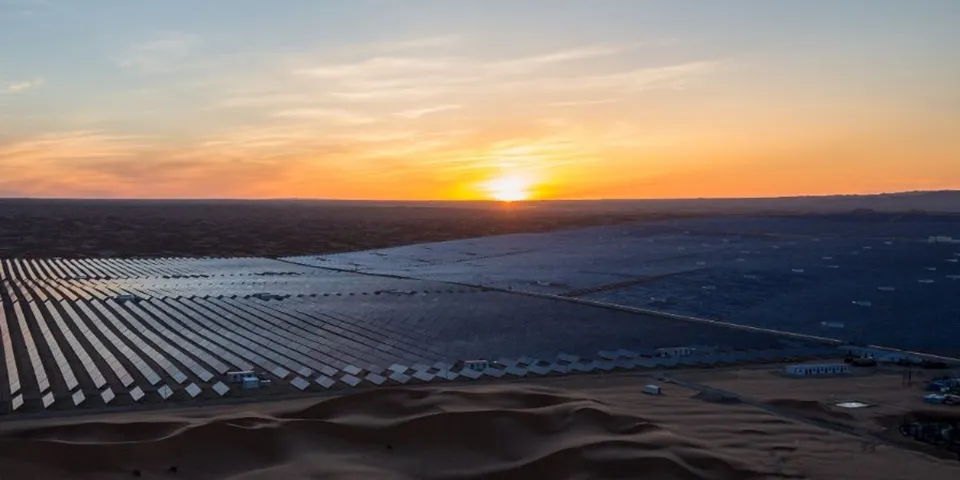

Middle East 341MW Ground-Mounted Power Plant

Location: Middle Eastern Desert

Type: Large-scale Ground-Mounted Power Plant

Scale: 341MW

Located in a desert environment, this project placed extremely high demands on the components' resistance to high temperatures and sandstorms. Energet Solar provided a complete dual-column support system, with the PV Aluminum Mid Clamp made of 6005-T5 aluminum alloy and thickened with anodized finish, effectively resisting the harsh environment.

Packaging and Shipping

We adopt standardized classified packaging for PV Aluminum Mid Clamp to avoid damage, deformation and surface scratches during long-distance transportation.

All clamps are first cleaned and sorted manually, then wrapped with anti-scratch protective film and packed into thickened cartons with shockproof foam inside.

For bulk orders, cartons will be fixed on wooden pallets with strapping bands to prevent extrusion and collision during container transportation. We cooperate with reliable international logistics providers to support sea freight, air freight and express delivery according to customer needs.

We can flexibly adjust shipping schedules to match project construction plans, provide real-time logistics tracking, and ensure all products arrive at the destination completely and on time.
