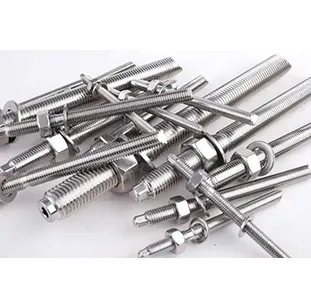

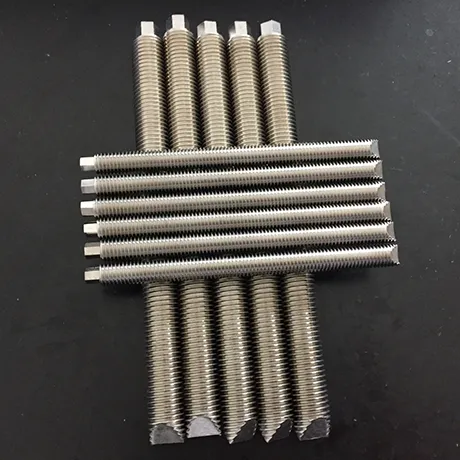

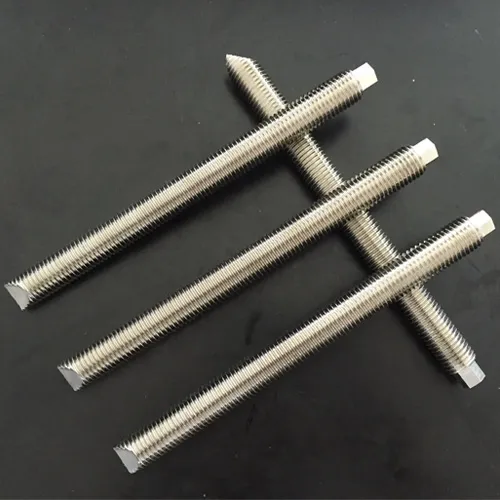

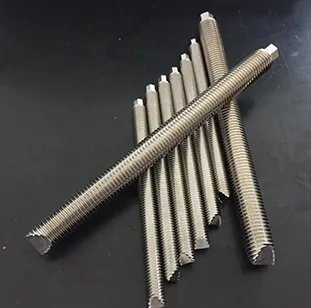

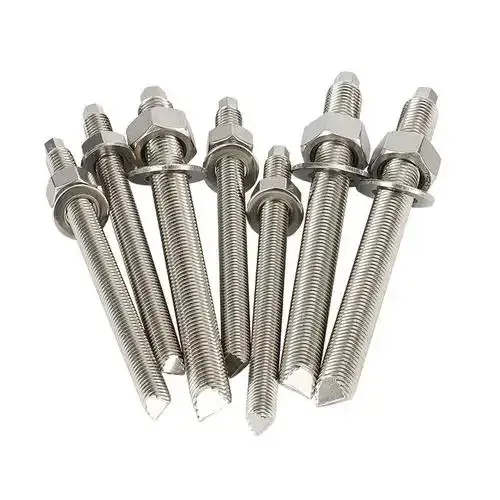

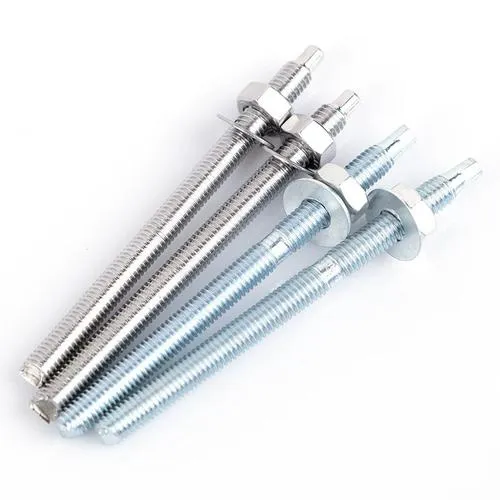

Chemical Anchor Bolt

Chemical Anchor Bolt is a specialized fastening component used for fixing photovoltaic mounting brackets to concrete foundations. Unlike mechanical expansion anchors that generate expansion force against the surrounding concrete, chemical anchor systems rely on chemical bonding between the bolt surface, adhesive resin and concrete hole wall, reducing stress concentration and improving installation safety.

The system generally consists of:

During installation, the drilled hole is cleaned before inserting the chemical adhesive. The anchor bolt is then installed into the hole, allowing the adhesive components to mix and cure around the bolt surface. After curing, the bolt and concrete form an integrated anchoring structure capable of transferring tensile and shear loads.

Compared with traditional expansion anchors, it does not rely on expansion pressure, making it suitable for applications where concrete integrity must be protected, such as rooftop solar installations, aging buildings and renovation projects.

Energet Solar provides chemical anchor bolts with different diameters, lengths, thread specifications and surface treatments according to project requirements. Options such as hot-dip galvanizing and other anti-corrosion coatings can be selected according to installation environments, including outdoor exposure, humid areas and long-term foundation applications.

Product Application

Chemical Anchor Bolt is widely used in photovoltaic mounting projects where stable foundation connection and reduced concrete damage are required.

1. Ground Mounted Solar Systems

For utility-scale solar farms, chemical anchor bolts provide strong fixation between mounting structures and concrete foundations. The bonding structure helps withstand wind uplift forces, mechanical loads and long-term outdoor exposure.

2. Rooftop PV Renovation Projects

When installing solar systems on existing buildings, avoiding damage to concrete structures is critical. Chemical anchoring reduces expansion stress and is suitable for rooftop reinforcement and retrofit applications.

3. Solar Carport Structures

Solar carports require reliable foundation connections to support additional wind and structural loads. Its provide stable fixing for steel columns and bracket systems.

4. Industrial and Commercial PV Projects

For factories, warehouses and commercial buildings, chemical anchors offer flexible installation solutions where conventional expansion anchors may not be suitable.

Installation Guidelines

Correct installation directly affects the final anchoring performance.

1. Hole Drilling

Select drill diameter and depth according to anchor specifications and project load requirements.

2. Hole Cleaning

Remove dust and debris using professional cleaning tools. Poor hole cleaning may reduce chemical bonding strength.

3. Adhesive Installation

Insert the chemical adhesive capsule or resin into the drilled hole according to installation requirements.

4. Anchor Bolt Installation

Rotate the bolt during insertion to ensure complete mixing and uniform adhesive distribution.

5. Curing and Load Testing

Allow sufficient curing time before applying loads. Final load testing should be performed when required by project specifications.

Product Advantages Over Traditional Anchors

Compared with conventional mechanical expansion anchor bolts, our product has comprehensive and irreplaceable advantages in structural safety, construction effect and project durability.

In terms of fixing principle and safety, traditional expansion bolts rely on physical extrusion expansion, which is prone to generate expansion stress and crack concrete substrates. Our chemical anchor bolt adopts chemical integration bonding without expansion stress, realizing zero damage to the foundation and higher overall structural safety.

In terms of bearing performance, the integrated bonding structure achieves full-surface stress bearing, with tensile and shear strength far exceeding ordinary expansion bolts. It can adapt to high-load photovoltaic bracket installation and extreme weather working conditions, avoiding anchoring loosening and falling off risks.

In terms of application adaptability and durability, this product is suitable for dense concrete, stone and other solid substrates with wide scenario coverage. The anti-corrosion steel body and stable chemical adhesive will not age or fail easily, with longer service life and lower later maintenance cost, providing more cost-effective long-term anchoring solutions for photovoltaic projects.

About Energet Solar

Energet Solar (Tianjin Yizhao International Trade Co., Ltd.) has been specializing in photovoltaic mounting systems and accessories since 2015. Located in Tianjin, China, we leverage the local steel industry supply chain and convenient port resources to provide stable PV mounting solutions for global solar projects.

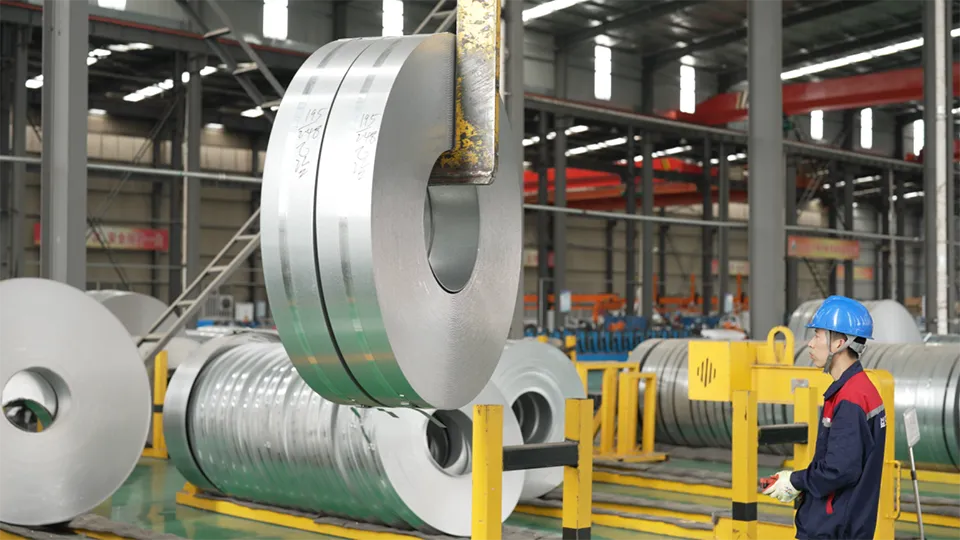

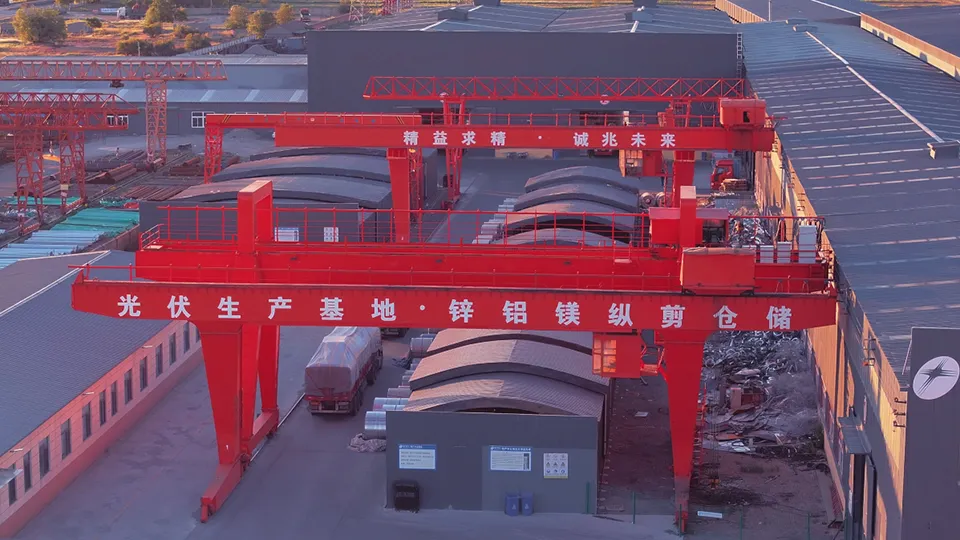

With 4 production facilities covering over 100,000 m², 50,000 tons of raw material reserves and an annual production capacity of 500,000 tons, we support large-scale PV projects with consistent quality and reliable delivery.

Our Chemical Anchor Bolt is produced under strict quality management systems, including ISO 9001, ISO 14001 and ISO 45001 certifications. The company has also passed SGS factory verification, demonstrating our manufacturing capability, quality control procedures and international supply experience.

Supported by experience from 1,000+ PV projects, including large-scale ground-mounted solar plants and the 1.2GW Middle East PV project, Energet Solar provides customized anchoring solutions for ground solar systems, rooftop PV and commercial solar applications.

FAQ

What is a chemical anchor bolt used for in solar mounting systems?

Its are used to secure photovoltaic mounting brackets and structural components to concrete foundations through chemical bonding instead of mechanical expansion.

Why choose chemical anchors instead of expansion bolts?

Chemical anchors reduce expansion stress on concrete and provide better adaptability for projects requiring structural protection, high load capacity or renovation installation.

Can chemical anchor bolts be customized for different solar projects?

Yes. Bolt diameter, embedded length, thread specifications and surface treatments can be customized according to project design requirements.

Are chemical anchor bolts suitable for outdoor solar installations?

Yes. With appropriate corrosion protection treatment, it can be used for long-term outdoor photovoltaic applications.
