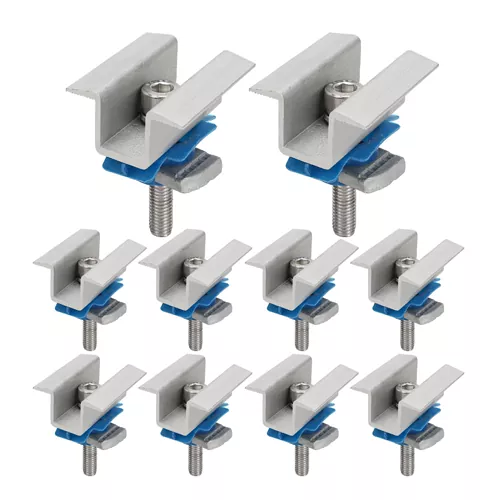

Universal PV Module Clamp

Modern photovoltaic projects often involve solar modules from different manufacturers, each with slightly different frame dimensions. Traditional fixed-size clamps require multiple specifications, increasing procurement complexity and inventory costs.

The Universal PV Module Clamp is designed to solve this challenge through an adjustable clamping structure that accommodates various frame heights without changing accessories. One clamp can serve multiple module specifications, making installation planning significantly more efficient.

This universal compatibility helps installers reduce material preparation time while simplifying future maintenance and module replacement.

Engineered for Reliable Module Protection

A module clamp must provide sufficient holding force without damaging the aluminum frame of the solar panel.

Our Universal PV Module Clamp features precision-machined contact surfaces with smooth edges and burr-free finishing. The optimized contact geometry distributes clamping pressure evenly across the module frame, reducing localized stress while maintaining secure fixation under long-term outdoor loading.

This balanced design helps protect module frames from deformation while ensuring reliable structural performance.

High-Quality Materials for Outdoor Applications

The clamp is manufactured from high-strength anodized aluminum alloy, combining excellent mechanical strength with low weight.

Compared with conventional steel fasteners, aluminum offers superior corrosion resistance while reducing the overall weight of the mounting structure.

The anodized surface creates a dense oxide layer that protects the material against:

- UV exposure

- Rainwater

- Humidity

- Salt spray

- Temperature fluctuations

This protective layer maintains both structural integrity and surface appearance throughout years of outdoor service.

Precision Manufacturing Ensures Consistency

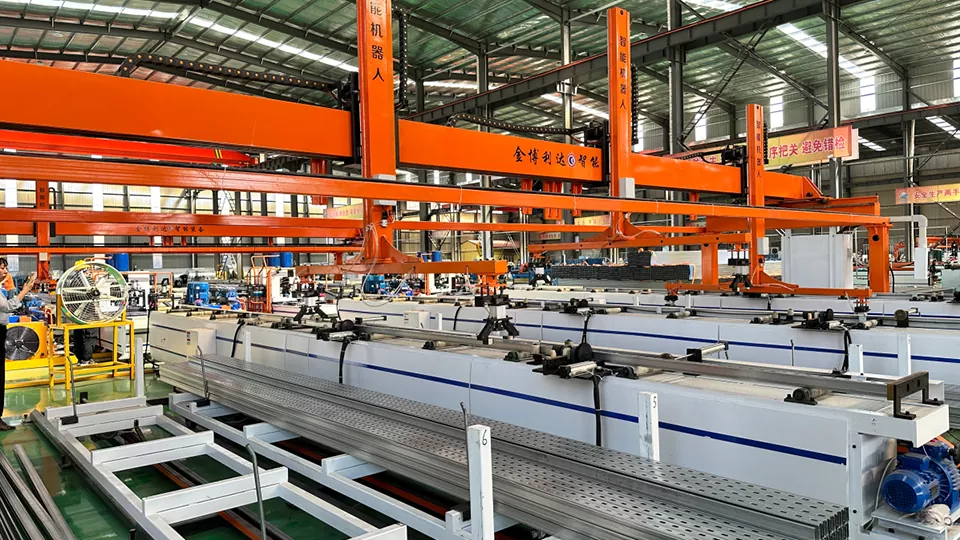

Every Universal PV Module Clamp is produced using automated extrusion, CNC machining, and precision inspection equipment.

Critical manufacturing processes include:

- Aluminum profile extrusion

- CNC edge finishing

- Precision slot machining

- Surface anodizing

- Dimensional inspection

- Mechanical performance testing

Consistent production tolerances ensure that every clamp provides uniform installation performance across large photovoltaic projects.

Technical Specifications

Engineering Advantages

Universal Compatibility Reduces Inventory

One of the greatest advantages of a universal clamp is inventory simplification.

Instead of stocking multiple clamp heights for different solar module manufacturers, installers can standardize on a single adjustable solution. This reduces SKU management, minimizes ordering mistakes, and lowers warehouse storage requirements.

For EPC contractors handling projects with mixed module brands, universal compatibility also improves procurement flexibility and project scheduling.

Faster Installation on Site

Installation efficiency directly affects labor costs.

Because the clamp accommodates different module thicknesses without replacing accessories, installers spend less time identifying components during assembly. The simplified installation process reduces interruptions and allows construction teams to maintain consistent installation speed throughout the project.

For large-scale photovoltaic installations, these time savings can significantly improve overall construction efficiency.

Product Applications

Utility-Scale Solar Farms

Suitable for projects using multiple module suppliers, allowing standardized fastening throughout the installation.

Commercial Rooftop Systems

Provides flexible compatibility for commercial buildings where module specifications may vary between project phases.

Residential Solar Installations

Simplifies installation while allowing future module replacement without changing clamp specifications.

Solar Carports

Maintains secure module fixation despite continuous exposure to vibration, wind loading, and outdoor weather conditions.

Portable Photovoltaic Systems

The lightweight aluminum construction makes the clamp suitable for temporary or mobile photovoltaic installations requiring easy transportation and quick assembly.

Compatibility Guide

Compatible with a Wide Range of PV Modules

The Universal PV Module Clamp is designed to accommodate a broad range of framed photovoltaic modules commonly used in today's solar market. Its adjustable structure allows installers to use a single clamp model across multiple module brands, reducing the need for project-specific accessories.

Before installation, verify that the module frame thickness falls within the clamp's adjustable range and that the mounting rail system is compatible with the selected fastening hardware. Proper compatibility ensures secure fixation while maintaining the structural integrity of both the module and the mounting system.

Suitable for Different Mounting Systems

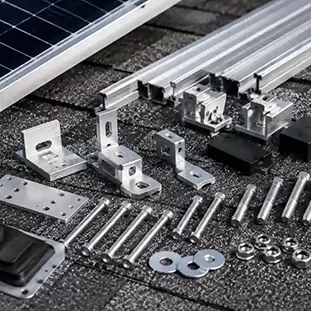

The clamp can be integrated into various photovoltaic support structures, including:

- Ground-mounted solar racking systems

- Pitched roof mounting systems

- Flat roof ballast systems

- Solar carports

- Agricultural photovoltaic structures

- Industrial and commercial rooftop installations

Its universal design provides greater flexibility when projects involve different mounting configurations or future system expansions.

How Universal Clamps Reduce Project Costs

Beyond installation convenience, universal clamps offer measurable economic advantages throughout the entire project lifecycle.

Using a single adjustable clamp instead of multiple fixed-size models helps simplify procurement planning and reduces the number of individual part numbers that must be managed.

For distributors and EPC contractors, this means:

- Lower inventory levels

- Fewer purchasing errors

- Simplified warehouse management

- Faster material preparation

- Easier future module replacement

- Reduced maintenance inventory

These advantages become increasingly valuable in large-scale photovoltaic projects where thousands of fastening components are installed.

Why Choose Energet Solar

Choosing a reliable clamp supplier means more than selecting a quality product. It also requires dependable engineering support, stable manufacturing capacity, and consistent product performance.

Energet Solar provides comprehensive solutions for photovoltaic mounting systems through:

- Advanced aluminum processing equipment

- Automated manufacturing lines

- Strict quality management procedures

- OEM and ODM customization services

- Technical support from experienced engineers

- Stable global production capacity

- Fast delivery for international projects

- Comprehensive support from design to shipment

Our goal is to help customers simplify installation, improve project efficiency, and build reliable photovoltaic systems that perform consistently throughout their service life.

Frequently Asked Questions

What makes a Universal PV Module Clamp different from a standard clamp?

A universal clamp features an adjustable design that can accommodate multiple module frame thicknesses, reducing the need to stock different clamp sizes for different projects.

Which types of solar modules are compatible?

The clamp is suitable for most framed monocrystalline, polycrystalline, and bifacial photovoltaic modules within the specified adjustment range.

Can it be used on both rooftop and ground-mounted systems?

Yes. It is widely used in residential, commercial, industrial, and utility-scale photovoltaic installations.

Does one clamp fit every solar panel?

No. While the clamp is compatible with a wide range of module sizes, the frame thickness must still fall within the product's designed adjustment range.

Is customization available?

Yes. We offer customized dimensions, surface finishes, bolt configurations, and packaging according to customer requirements.

How should the clamp be maintained?

Periodic visual inspections are recommended to check bolt tightness, clamp positioning, and overall structural condition, particularly after extreme weather events.

What inspections are performed before shipment?

Each production batch undergoes dimensional inspection, appearance inspection, adjustment function testing, anodized surface verification, and packaging inspection before delivery.

Can the clamp support long-term outdoor use?

Yes. Manufactured from high-strength anodized aluminum alloy, the clamp is designed to withstand long-term exposure to sunlight, rain, humidity, and temperature fluctuations commonly encountered in photovoltaic applications.
