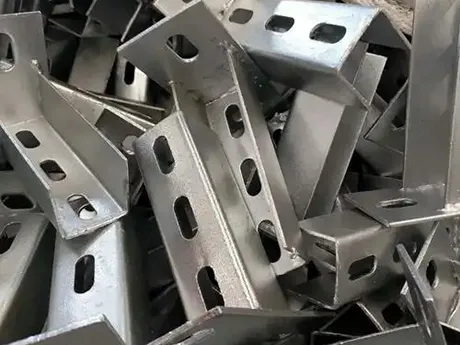

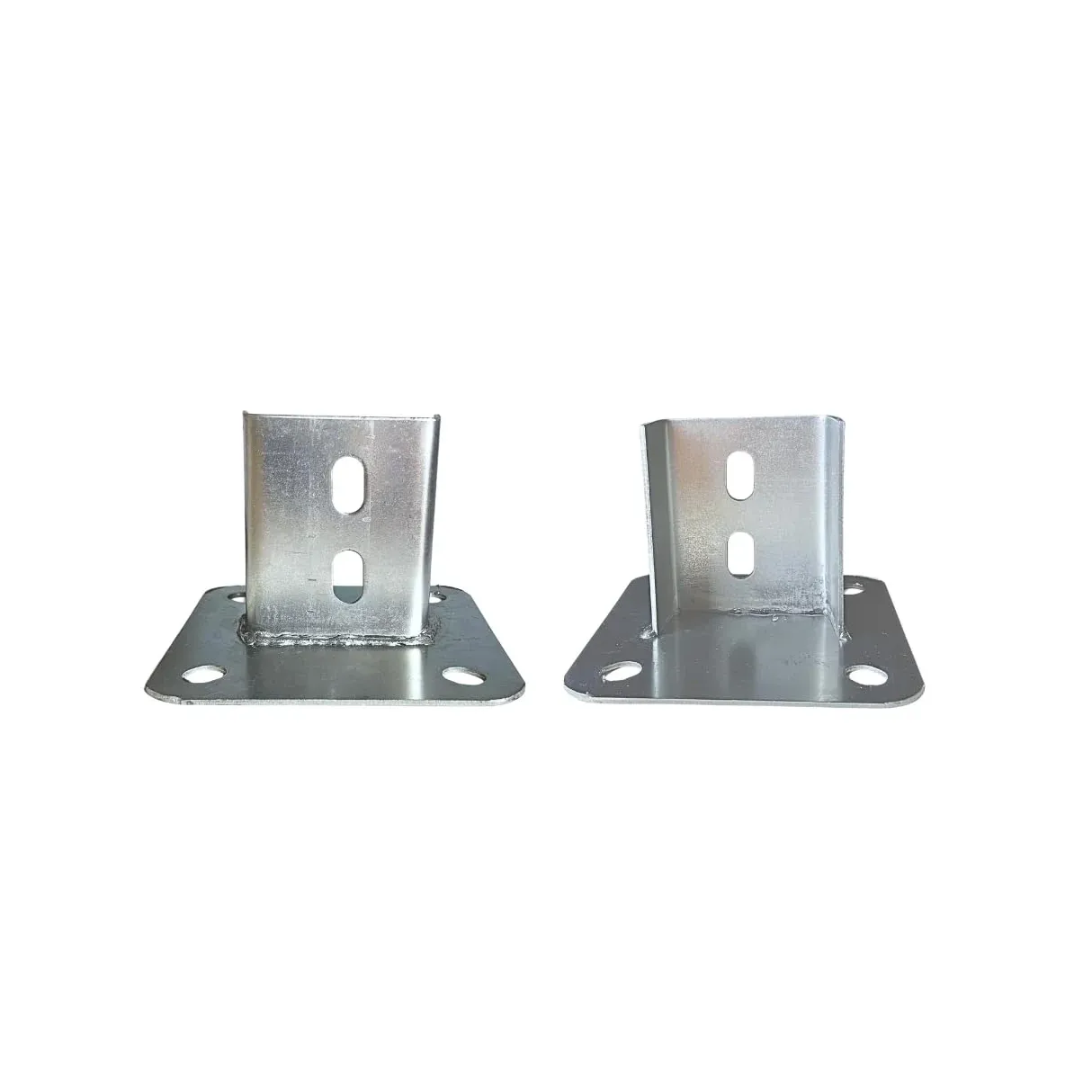

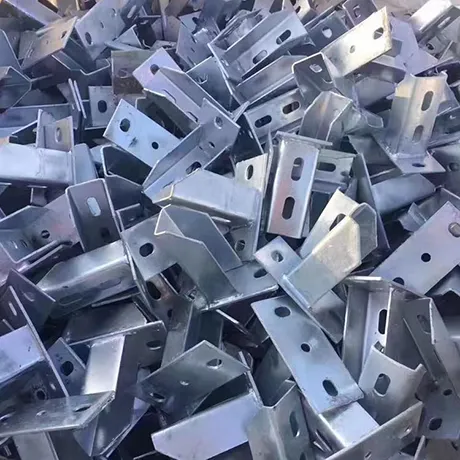

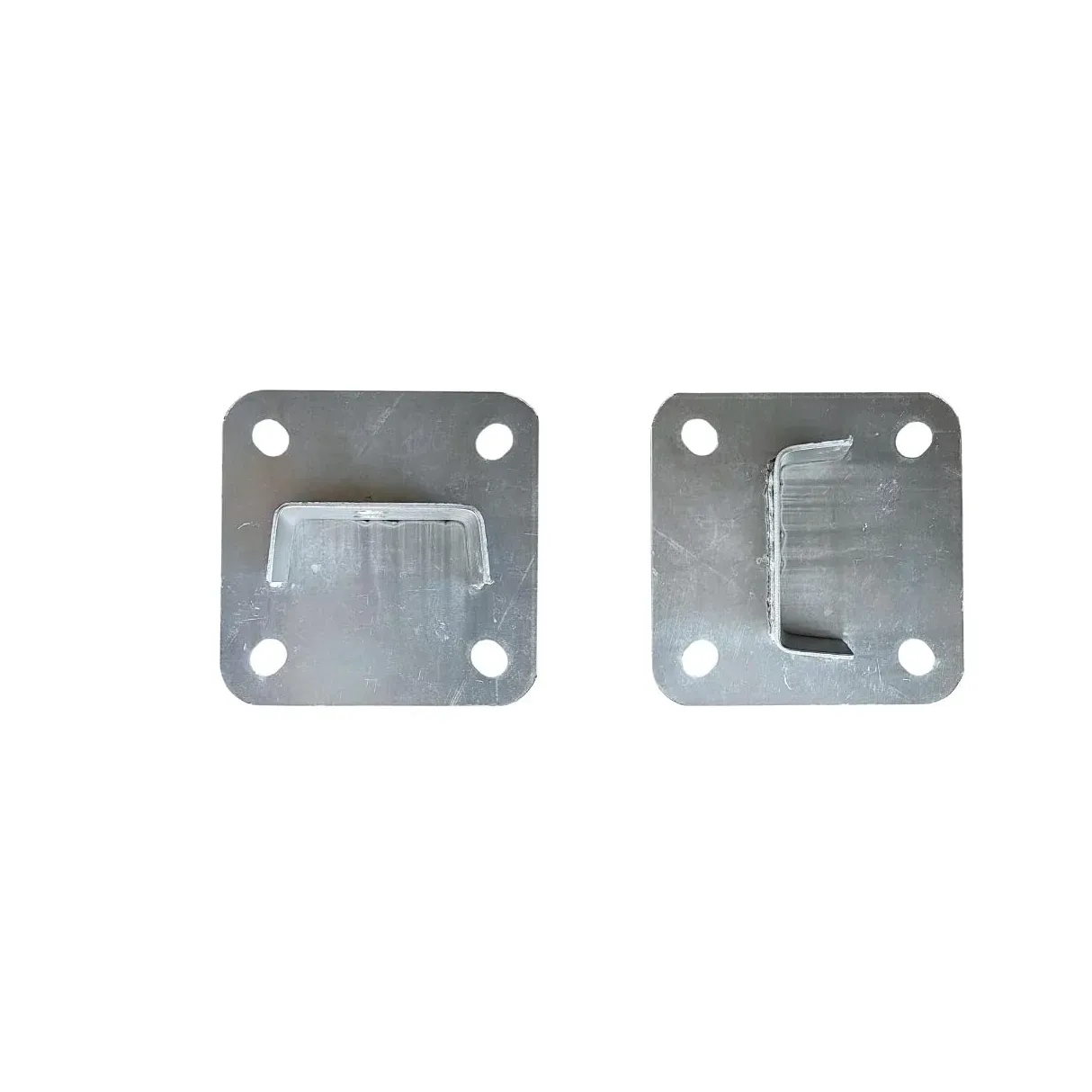

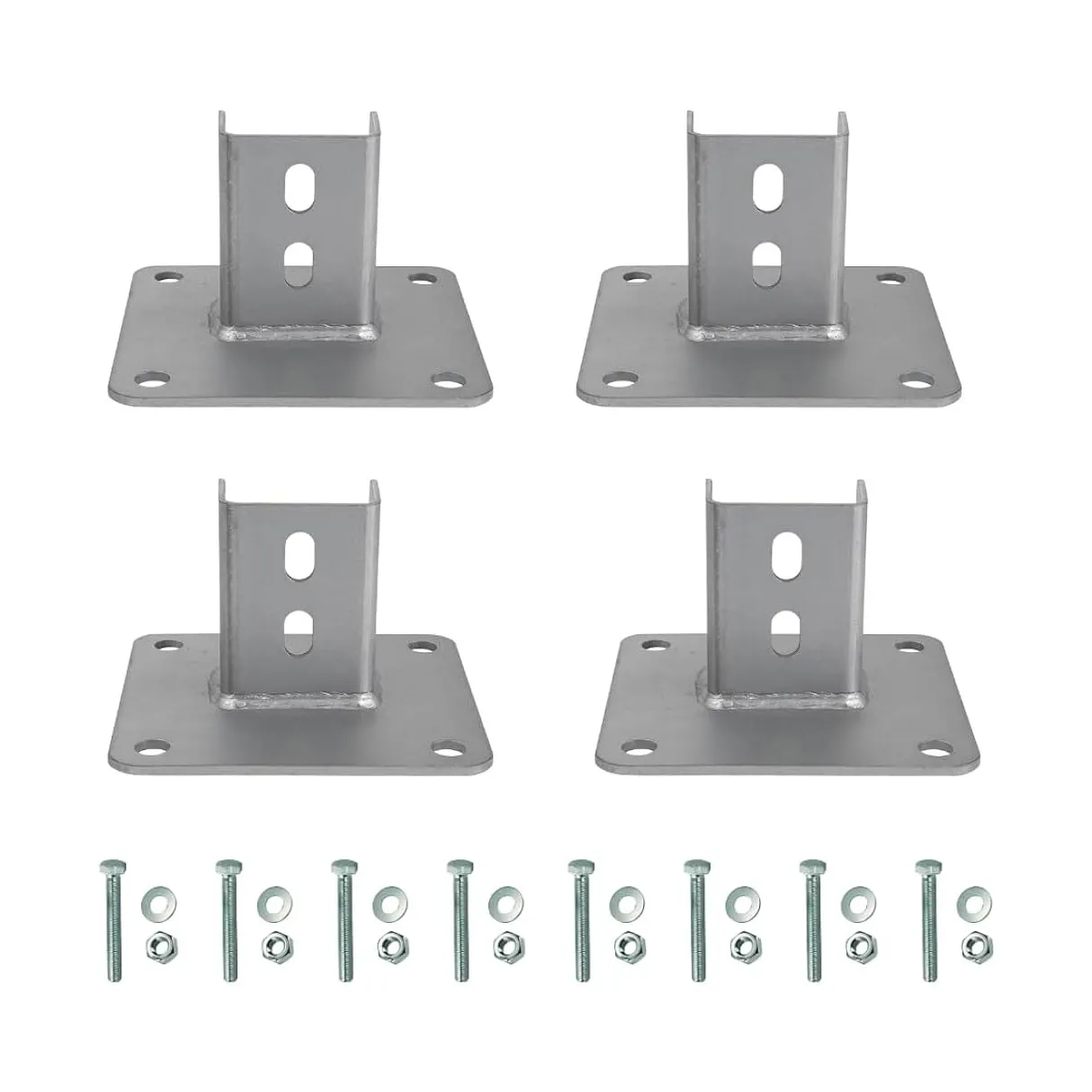

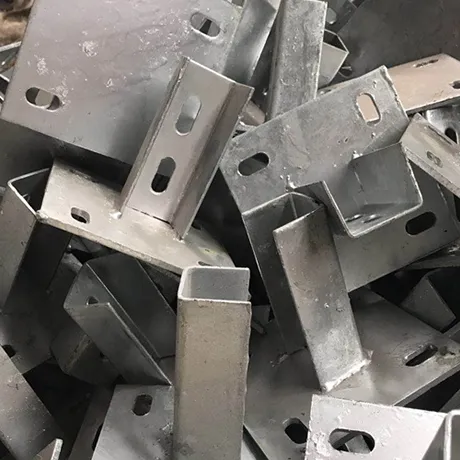

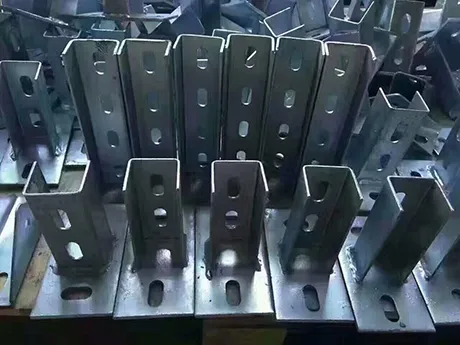

Solar Mounting Base Plate

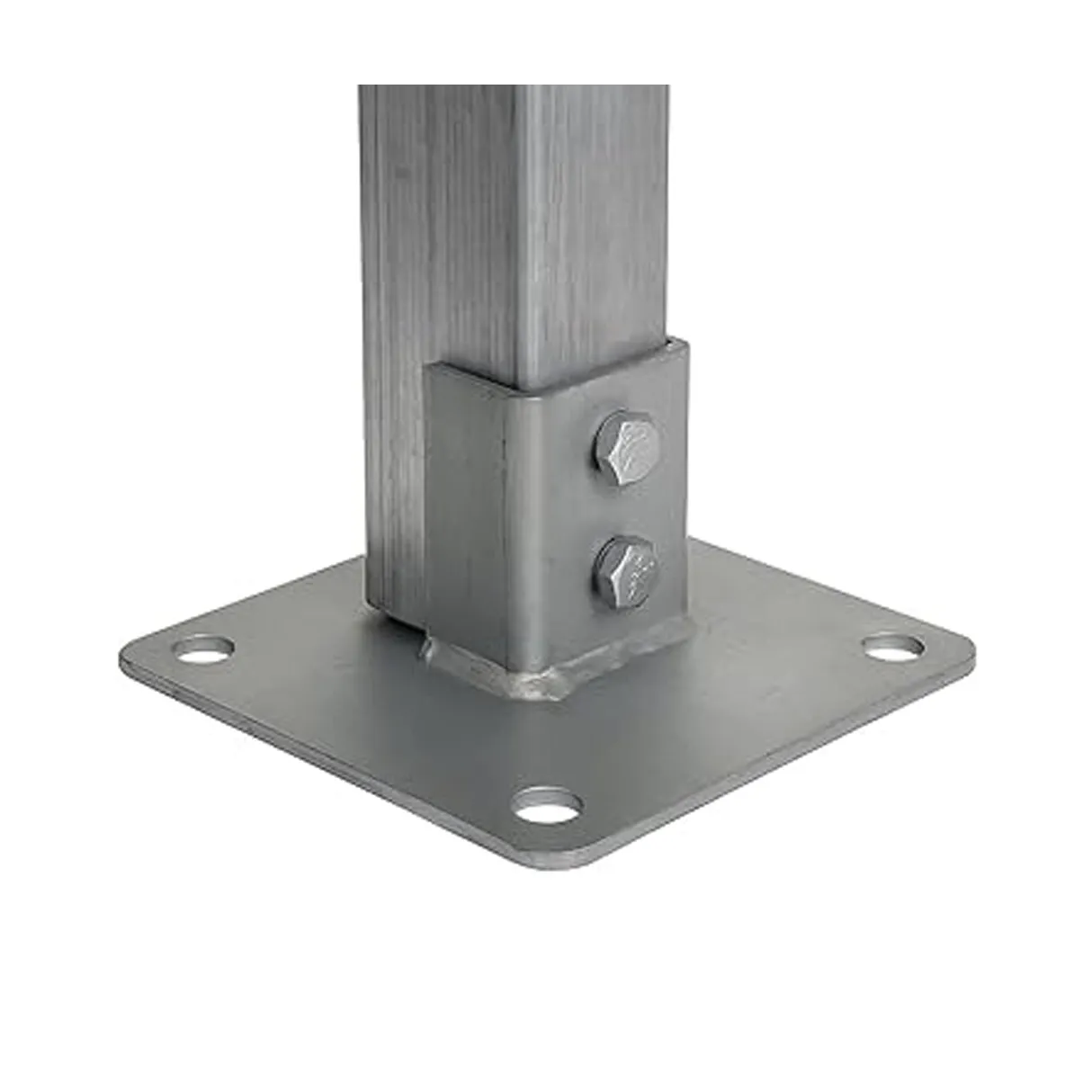

Solar Mounting Base Plate is an important structural connection component used at the bottom of photovoltaic mounting systems. It creates a stable transition between solar support columns and foundations, helping improve structural stability and installation accuracy.

In photovoltaic projects, foundation surfaces may have certain installation differences, and direct connection between columns and foundations may cause concentrated stress. A properly designed base plate helps enlarge the connection area, improve force distribution and provide a more stable foundation interface for solar mounting structures.

Energet Solar provides standard and customized Solar Mounting Base Plates widely used in:

- Ground-mounted PV racking systems

- Industrial and commercial rooftop PV systems

- Solar carport structures

- Other photovoltaic supporting structures

Material & Manufacturing Process

Q355B (S355JR) Carbon Steel

Our Solar Mounting Base Plate is manufactured using Q355B (S355JR) carbon steel sourced from Xintian Steel. The material provides reliable structural strength and is suitable for photovoltaic mounting applications requiring stable mechanical performance.

Precision Manufacturing Process

Based on Energet Solar's PV mounting manufacturing experience, the production process includes:

Steel Cutting

Accurate cutting ensures consistent dimensions and stable processing quality.

Stamping Processing

Professional stamping technology forms the required structure while maintaining product consistency.

CNC Hole Processing

High-precision CNC hole processing ensures accurate bolt hole positions, improving installation matching with solar columns and fasteners.

Hot-Dip Galvanizing

The finished base plates are treated with hot-dip galvanization. With a zinc coating thickness of 45--85μm, the surface treatment improves corrosion resistance for outdoor photovoltaic applications.

Key Features

Strong Structural Support

Manufactured from Q355B (S355JR) carbon steel, the base plate provides reliable support performance for photovoltaic mounting structures.

Improved Foundation Connection

The base plate creates a stable connection between solar columns and foundations, helping improve overall system stability.

Accurate Installation

Precision hole processing ensures consistent dimensions and helps reduce adjustment requirements during installation.

Outdoor Corrosion Resistance

Hot-dip galvanizing provides a protective surface layer to improve resistance against outdoor environmental exposure.

Flexible Customization

Energet Solar supports customization of:

- Plate thickness

- Plate dimensions

- Hole spacing

- Connection design

Customization can be adjusted according to different PV mounting structures and foundation requirements.

Technical Specifications

- Thickness: 3.0mm~10.0mm

- Material: Q355B (S355JR) Carbon Steel

- Surface Treatment: Hot-Dip Galvanized；Thickness: 45~85um

- Application: Ground-mounted PV Racking System / Rooftop PV Racking System

- Function: Connect Ground Columns & foundations

Manufacturing Capability and Quality Assurance

Professional PV Mounting Manufacturer Since 2015

Founded in 2015 and located in Tianjin, China, Energet Solar specializes in the R&D, design, production and sales of photovoltaic mounting systems and related accessories.

With expertise in zinc-aluminum-magnesium, hot-dip galvanized steel and aluminum alloy mounting structures, the company provides complete PV mounting solutions for different application scenarios.

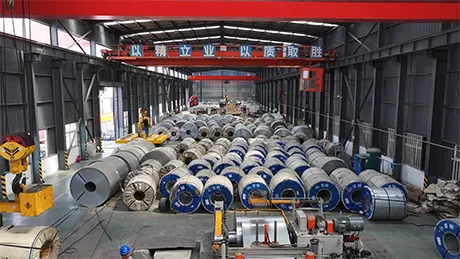

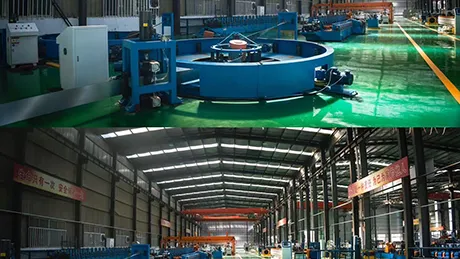

Large-Scale Production Capability

Energet Solar operates:

- 4 modern factories

- 100,000+㎡ total factory area

- 50,000 tons raw material reserve

- 500,000 tons annual production capacity

- 40+ production lines

These production resources support stable supply for both customized orders and large-scale PV projects.

Certified Management Systems

Energet Solar has obtained:

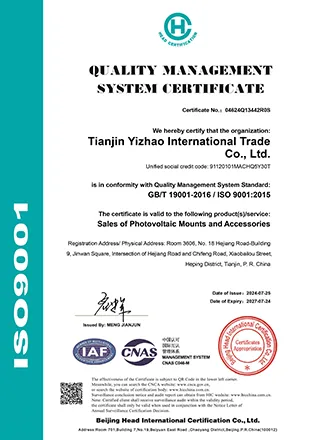

- ISO 9001:2015 Quality Management System Certification

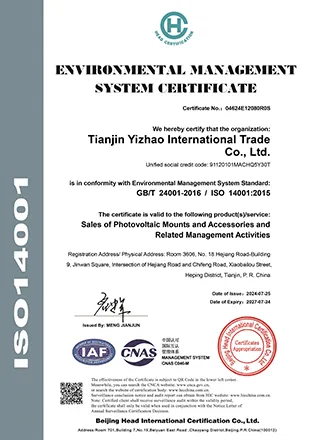

- ISO 14001:2015 Environmental Management System Certification

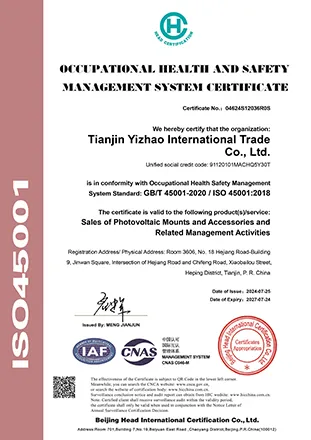

- ISO 45001:2018 Occupational Health and Safety Management System Certification

These certifications demonstrate our commitment to standardized quality management, environmental responsibility and production safety.

Why Choose Energet Solar Solar Mounting Base Plate?

Verified PV Industry Experience

With more than 1,000 PV projects worldwide and experience in large-scale applications including ground-mounted projects, rooftop systems and agrivoltaic projects, Energet Solar understands different photovoltaic installation requirements.

Reliable Manufacturing Capability

Our integrated production system covers material preparation, structural processing and product delivery, helping ensure consistent quality and supply stability.

International Quality Recognition

Energet Solar has been verified by SGS as an Alibaba Gold Plus Supplier. Our factory capability, management systems and trade operations have passed onsite assessment.

European Standard Compliance Capability

Energet Solar PV mounting systems have passed verification according to European construction standards including EN 1090-1 and CPR requirements, supporting photovoltaic projects in the European market.

Engineering Customization Support

Our technical team provides customized solutions according to different mounting structures, foundation conditions and project requirements.

FAQ

Q1: What is a Solar Mounting Base Plate used for?

A: Solar Mounting Base Plate connects PV support columns with foundations. It improves the connection stability between the mounting structure and the foundation surface while helping distribute structural loads.

Q2: What material is used for your Solar Mounting Base Plate?

A: Our base plates are manufactured from Q355B (S355JR) carbon steel sourced from Xintian Steel, providing reliable strength for photovoltaic mounting applications.

Q3: Can you customize the base plate size?

A: Yes. Energet Solar supports customization of thickness, dimensions and hole spacing according to different solar mounting structures and foundation conditions.

Q4: What surface treatment is applied to the base plate?

A: The base plate adopts hot-dip galvanizing treatment with a zinc coating thickness of 45--85μm to improve outdoor corrosion resistance.

Q5: What projects can use Solar Mounting Base Plate?

A: It is suitable for ground-mounted PV systems, rooftop solar structures and solar carport applications.

Q6: How does Energet Solar ensure product quality?

A: Energet Solar follows standardized production management with raw material verification, dimensional inspection, processing inspection and surface treatment checking.

Q7: Why choose Energet Solar as a PV mounting component supplier?

A: Founded in 2015, Energet Solar has 4 factories, 100,000+㎡ production space, 500,000T annual capacity, ISO-certified management systems and global PV project experience, providing reliable PV mounting component solutions.
